Honda / Acura XM firmware features


Post new topic   Reply to topic    InDashPC.org Forum Index -> Software
View previous topic :: View next topic
Author Message
jbors
Site Admin


Joined: 12 Nov 2004
Posts: 1675

PostPosted: Wed Jun 02, 2010 9:55 am    Post subject: Honda / Acura XM firmware features Reply with quote

Xm firmware for GROM USB adapter will emulate XM.
Factory XM have to be disconnected.
Upon ignition cycle press AUX (XM) button, to activate the unit.
XM1 will be used for USB stick as shown below.

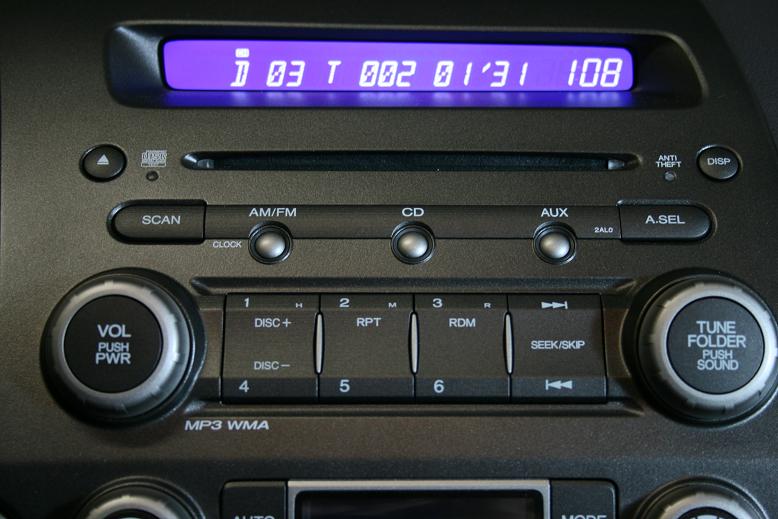

Song titles will cycle through and will show the Disk / Track / Time as shown below:

In order to show track title/ artist/ genre press DISP button.
The controls are:
Preset 1: Rewind Back
Preset 2: Random on/off
Preset 3: Fast Forward
Preset 5: Disk -
Preset 6: Disk +
SCAN: SCAN on/off
Tune/Folder: Change playlists (disks)
Switch to iPod mode press AUX (XM) once more, to XM2 channel. GROM USB will show as below:
Back to top
View user's profile Send private message
vissjb



Joined: 14 Apr 2010
Posts: 2

PostPosted: Wed Mar 23, 2011 12:05 am    Post subject: Changing Modes? Reply with quote

How about instructions on changing between USB and iPod Modes? The instructions on the doc section of the GROM website say to refer to the instructions that came with the unit, but I no longer have them. The website really needs to include a write up of all the functionalities of the XM emulation firmware. Everything seems to refer to the CD changer firmware.
Back to top
View user's profile Send private message
jbors
Site Admin


Joined: 12 Nov 2004
Posts: 1675

PostPosted: Thu Mar 24, 2011 3:16 pm    Post subject: Reply with quote

Changin modes in XM emulation through AUX as explained above:

Switch to iPod mode press AUX (XM) once more, to XM2 channel. GROM USB will show as below

Try that
Back to top
View user's profile Send private message
extracrunchie



Joined: 26 Apr 2011
Posts: 1

PostPosted: Tue Apr 26, 2011 10:27 am    Post subject: Reply with quote

Would this work for cars that dont have XM and still emulate text?
Back to top
View user's profile Send private message
jbors
Site Admin


Joined: 12 Nov 2004
Posts: 1675

PostPosted: Tue Apr 26, 2011 12:01 pm    Post subject: Reply with quote

The stereo should be able to control XM (no XM presence needed).
Usually all Honda/Acura radios 05+ are capable.
Back to top
View user's profile Send private message
